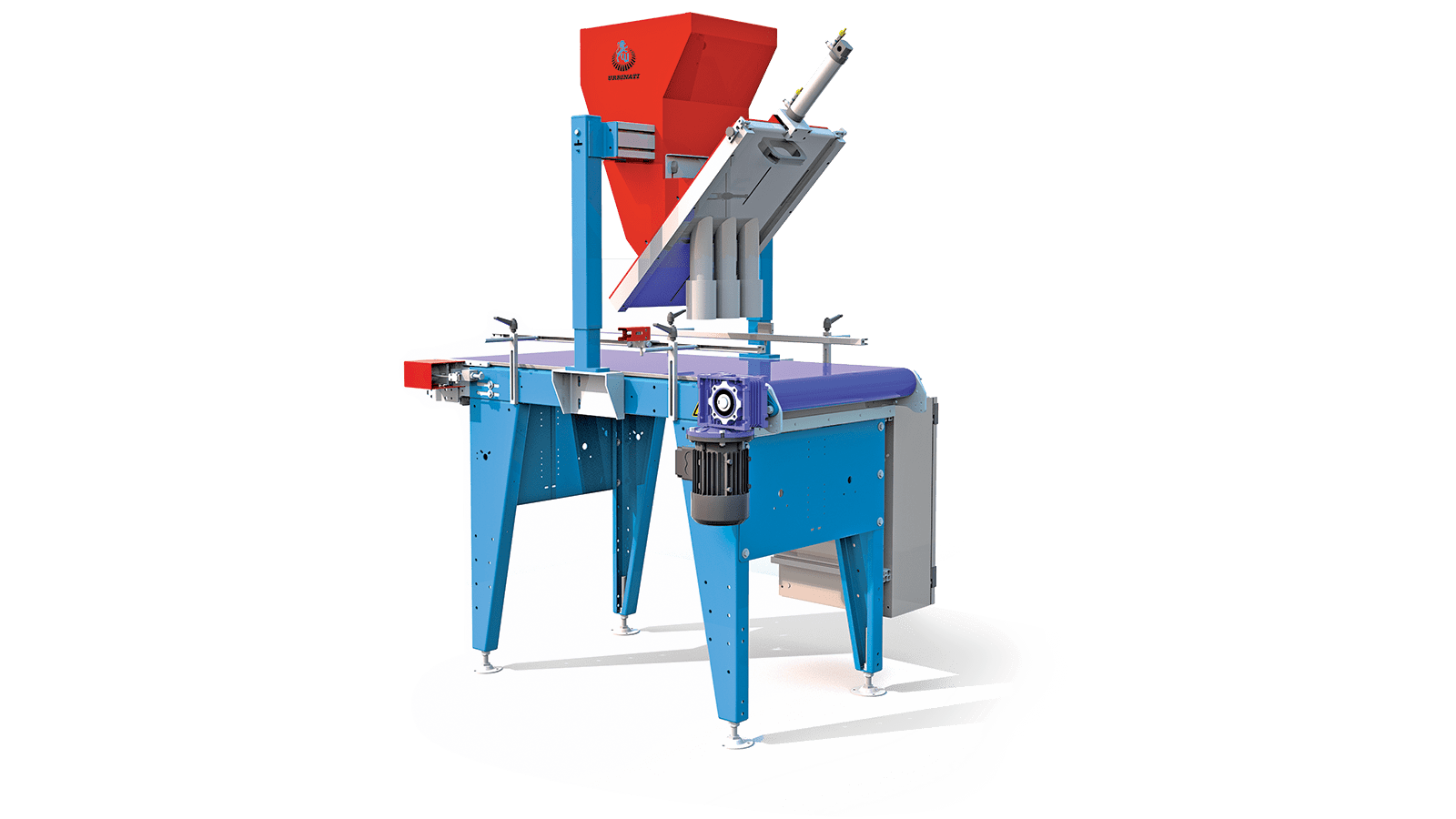

Urbinati SEMVOL Pot Seeder

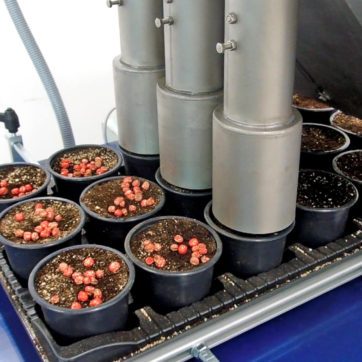

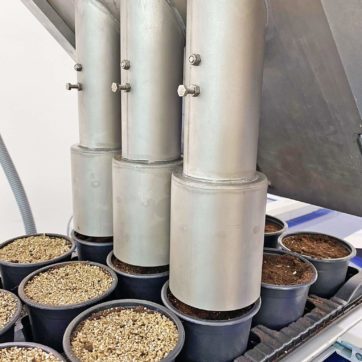

The SEMVOL volumetric seeder allows the volume sowing of pots in pot-trays.

Ideal for medium-large seeds such as those of some varieties of ornamental plants (e.g. palms), vegetables (e.g. peas, beans) and aromatic (e.g. coriander).

The seeding kit is always designed and made to measure, according to the container characteristics as well as according to the product volume to be dispensed for each individual pot.

For this reason, the SEMVOL can also be used as a precision covering unit: thanks to the customized kits, the machine is able to cover the pots surface evenly and without waste, with the desired and predetermined vermiculite or similar granulates quantity.

Frame length L = 1300 mm and electronically adjustable speed conveyor belt. Height adjustable hopper.

Machine equipped with PLC and controlled through the integrated 5.7 “touch screen panel.

The SEMVOL volumetric seeder can be used both as a single machine and integrated into a working line.

Urbinati SEMVOL Pot Seeder

	M.U	SEMPOT	SEMVOL	SEMVIB
HOURLY PRODUCTION (min-max)	pots/rows/containers/hour	1500	1500	600
DIMENSIONS of POTS/CONTAINERS (max)	mm	9-14	350	400
HOPPER CAPACITY (standard)	l	55	55	55
WEIGHT	Kg	60	185	165
VACUUM PUMP	Model	Venturi System	Venturi System	Venturi System
AIR CONSUMPTION (max)	l/min	100	100	100
NOZZLE KIT	mm	0,20 - 0,25 - 0,30 - 0,35 - 0,40 - 0,50 - 0,60 - 0,70

Urbinati SEMVOL Pot Seeder

Urbinati SEMSF13 Row Seeder

Urbinati SEMVOL Pot Seeder

Urbinati SEMVOL Pot Seeder

Height adjustable hopper.
Frame width L = 600 mm
Frame length (standard) L = 1300 mm.
Electronically adjustable speed.
PLC and controlled through the integrated 5.7 “touch screen panel.
Available in the right or left version.

Tube descent bar. Inner diameter available for the descent tubes: 6, 8, 12 or 17 mm.

Silicon nozzles Silicone nozzles with brass end. Multi-seeds nozzles Stronger Vacuum

Urbinati SEMVOL Pot Seeder

Urbinati SEMVOL Pot Seeder

The SEMVOL volumetric seeder allows the volume sowing of pots in pot-trays.

Ideal for medium-large seeds such as those of some varieties of ornamental plants (e.g. palms), vegetables (e.g. peas, beans) and aromatic (e.g. coriander).

The seeding kit is always designed and made to measure, according to the container characteristics as well as according to the product volume to be dispensed for each individual pot.

For this reason, the SEMVOL can also be used as a precision covering unit: thanks to the customized kits, the machine is able to cover the pots surface evenly and without waste, with the desired and predetermined vermiculite or similar granulates quantity.

Frame length L = 1300 mm and electronically adjustable speed conveyor belt. Height adjustable hopper.

Machine equipped with PLC and controlled through the integrated 5.7 “touch screen panel.

The SEMVOL volumetric seeder can be used both as a single machine and integrated into a working line.
