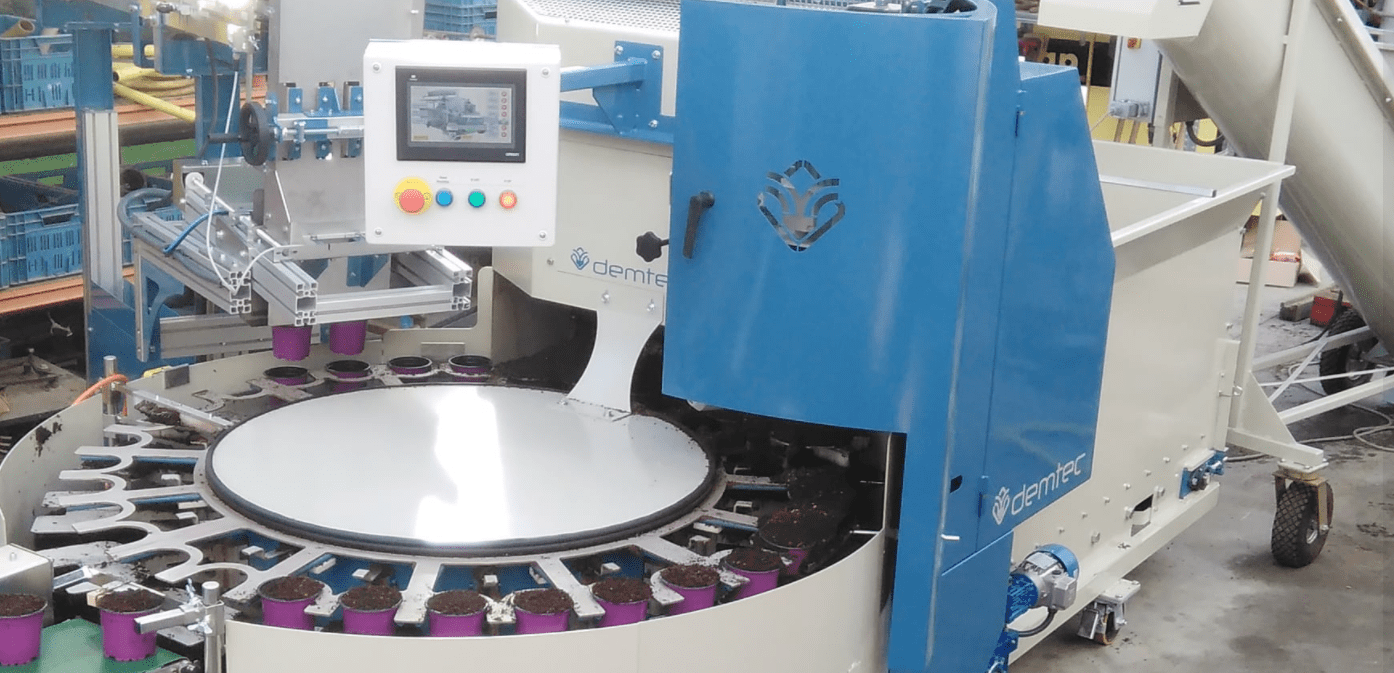

Demtec Evo² Potting Machine

Demtec's best potting machine yet, this filler should be the standard potting machine for everyone working with pots from 6 cm up to 27 cm. The machine is easily adjusted and is equipped with a full-automatic soil dosing system. The wide potting ring offers enough room for pots up to 27 cm, and is easily transported around the nursery thanks to pneumatic tyres. For the tree nursery, the machine has a soil hatch that releases substrate on to a rotating middle disc.  A pouring edge can be made which is ideal for mulching (e.g. bark).


  1. The chassis has two front  tyres, positioned wider, to improve stability. Two swiveling coasters on the back make the machine manoeuvrable. A detachable tow-bar is optional.
  2. The tub and turntable have been adjusted for more stability in high speed settings (at 4200 pot/hour it still runs smoothly). The height of the tub has also been lowered for better ergonomics.
  3. More space created for the evacuation soil coming from the drill and the soil return system has been redesigned to help run the machine with specific soil compositions such as coco fibre soil and clay (for example) easier.
  4. The soil feed belt now has the flexibility to run backwards if something jams or if the grower wants to change the kind of soil. The automatic soil regulation system has a selector to place the settings of the system for small and big pots.
  5. The central adjustment system is a very important feature of the EVo2 where centre rods used to be able to work with a fixed drill position.
  6. The central switch box has been moved to improve accessibility and create more space for the pot feeding belt. Some instruments are now placed over the turntable on a pivoting arm.
  7. Standard pot de-stacker will be the DTC2B pot de-stacker will be standard mounted on the front plate with a pivoting pot-feed belt. The pot ejector is equipped with a new safe guard, a bit like the Smart machine.


  • Capacity [pots/h]:1,200 - 4,200 single, up to 7,000 double
  • Pot sizes [cm]:Ø 6 - 27 single, Ø 7 - 13 double
  • Number of pot holders:16
  • Contents bucket:2 m³

A double-acting potting machine that can be converted in no time at all. The EVO² double works with pots up to 13 cm to double production speed. The EVO² can be converted back to a single-acting machine in no time. The machine is equipped with a mobile supply belt with a pot destacker that can unstacker the pots both single and double. The drilling unit is also suitable for both double drilling and single drilling. The PLC saves all settings for you so that you can change pot size in no time. For those who want to pot very flexibly and quickly, this mobile machine is a must.
