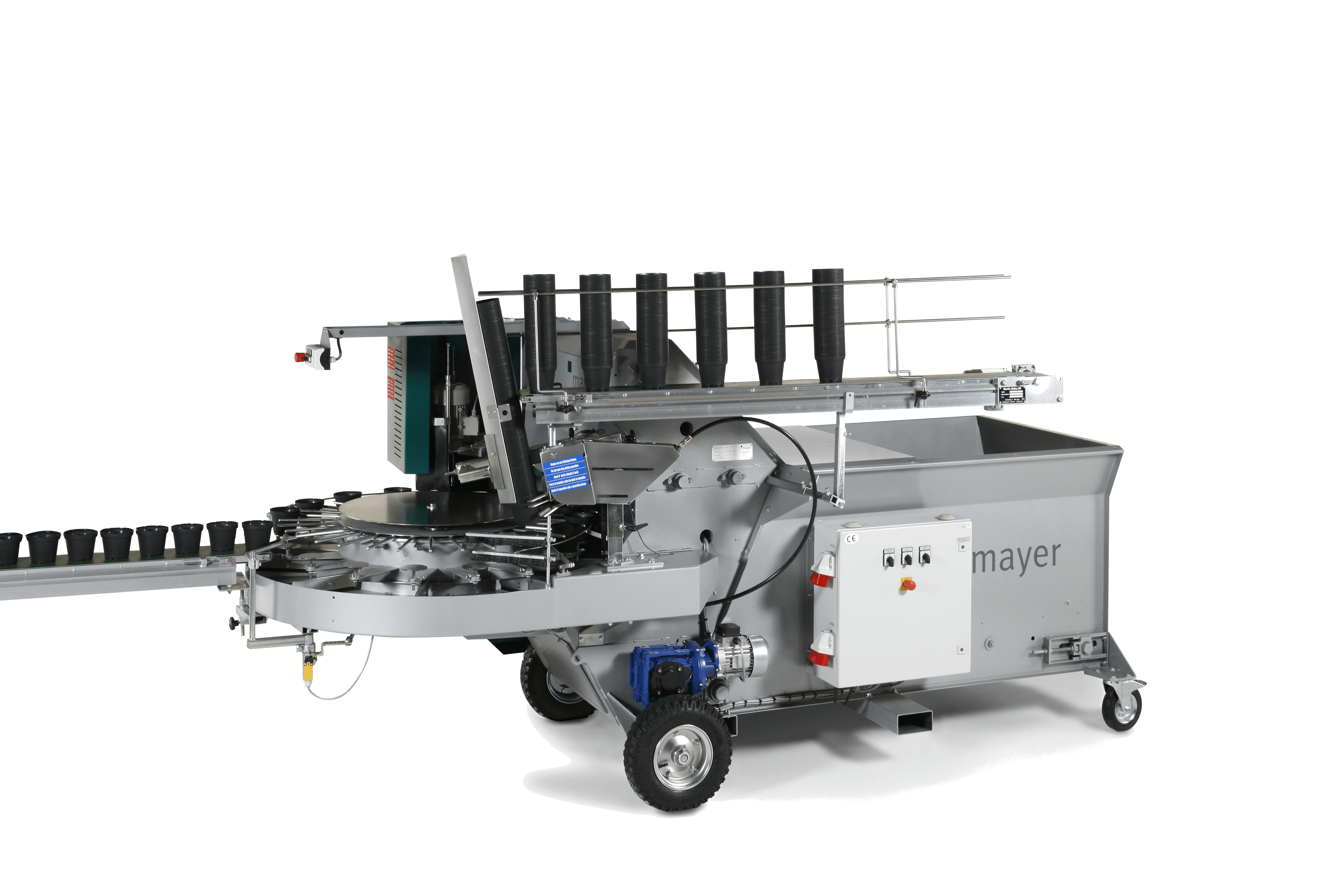

Mayer TM 1010F Potting Machine

The superior choice in terms of productivity, versatility and economy, the Mayer Potting Machine TM 1010F is sophisticated in all details. It sets the industrial standard for this segment in terms of technology and performance. Pot plant producers and hardy nursery stock growers will benefit from the original Mayer circular system for optimum ergonomics, smooth-running and precision - even at top production speeds.

Consistent quality

The TM 1010F helps achieve outstanding planting quality by consistently drilling accurate, central planting holes. The coordination of pot position and pot transfer is fully synchronised. The high degree of mechanical precision also ensures the processing quality of subsequent stations or systems (e.g. automatic planting machines).

Optimum adaptability

Increased productivity is coupled with particularly convenient handling and controls. The centrally adjustable pot holder considerably reduces set-up times when adapting to different pot diameters. The electronic frequency controls for the turntable and elevator ensure precise output control and are easy to operate via the control panel within the working area. Additional frequency converters for soil conveyor, drill motor and conveyor belt, as well as a PLC control, are available as extras. The set parameters can be programmed using the PLC control.

Variety of equipment

The TM 1010F is able to meet a broad variety of practical requirements with a large variety of equipment and additions available. For instance, depending on the partition sizes, with the turntable pot diameters of between 5 and 30 cm can be processed. To provide optimum conditions for its use, set-up of the TM 1010 is flexible to suit local conditions, operating requirements and individual work processes. For example, the conveyor belt can be connected at 8 different positions on the turntable for the highest possible degree of ergonomics and efficiency. This enables several staff members to pot simultaneously if required.

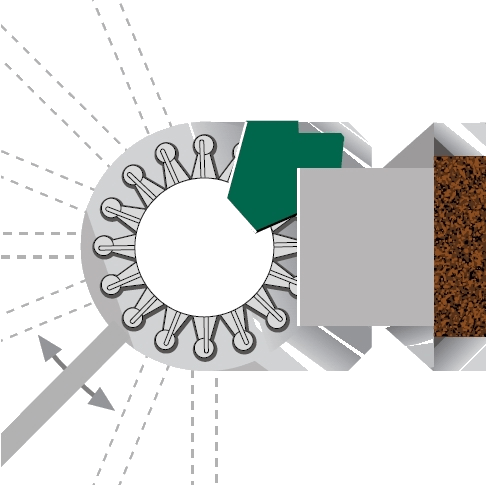

  • Mayer circular system for optimum ergonomics
  • Maximum smooth-running and precision, even at top production speeds
  • Perfectly centred planting holes for top planting quality
  • Fast central adjustment to pot sizes by means of a hand crank
  • Wide range of pot sizes and types can be used (round and square pots)
  • Height adjustable pot supports
  • Can be used with standard or special drills and flat or crown plates
  • Compatible with all popular automation and further transplanting systems
  • Large variety of different configurations with accessories
  • Substrate conveyed without harm to its structure

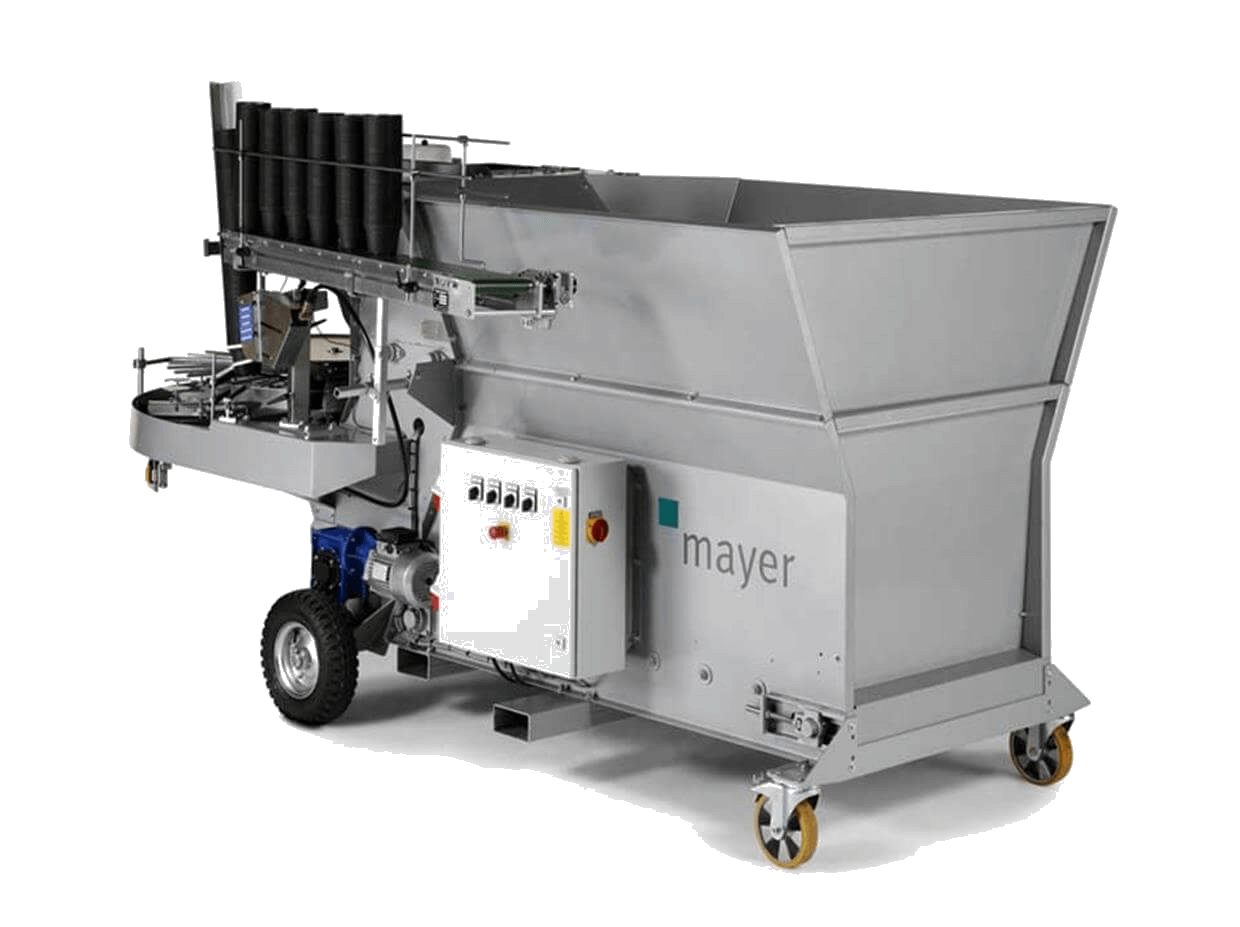

  • Large soil hopper facilitates continuous processing at a high output rate
  • Can process heavy substrates
  • High safety standard (e.g. 2 emergency OFF switches)
  • Electronic variable-speed controls are arranged ergonomically within the working area
  • Separate drives for turntable and soil conveyor (operating and maintenance advantages)
  • Flexible arrangement of the conveyor belt with 8 adjustable positions around the turntable
  • Electronic precision control of machine output by means of two frequency converters for the elevator and turntable
